Description

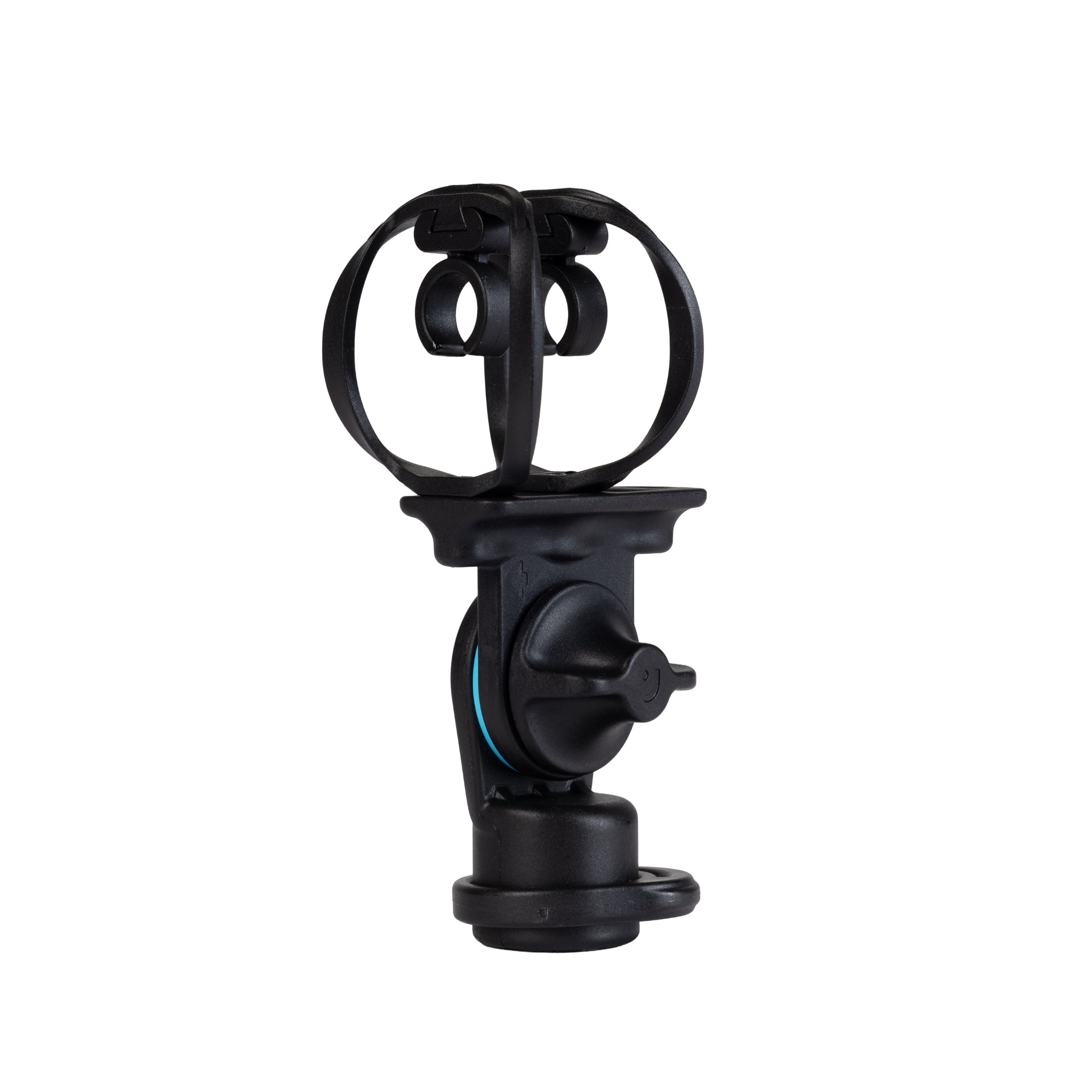

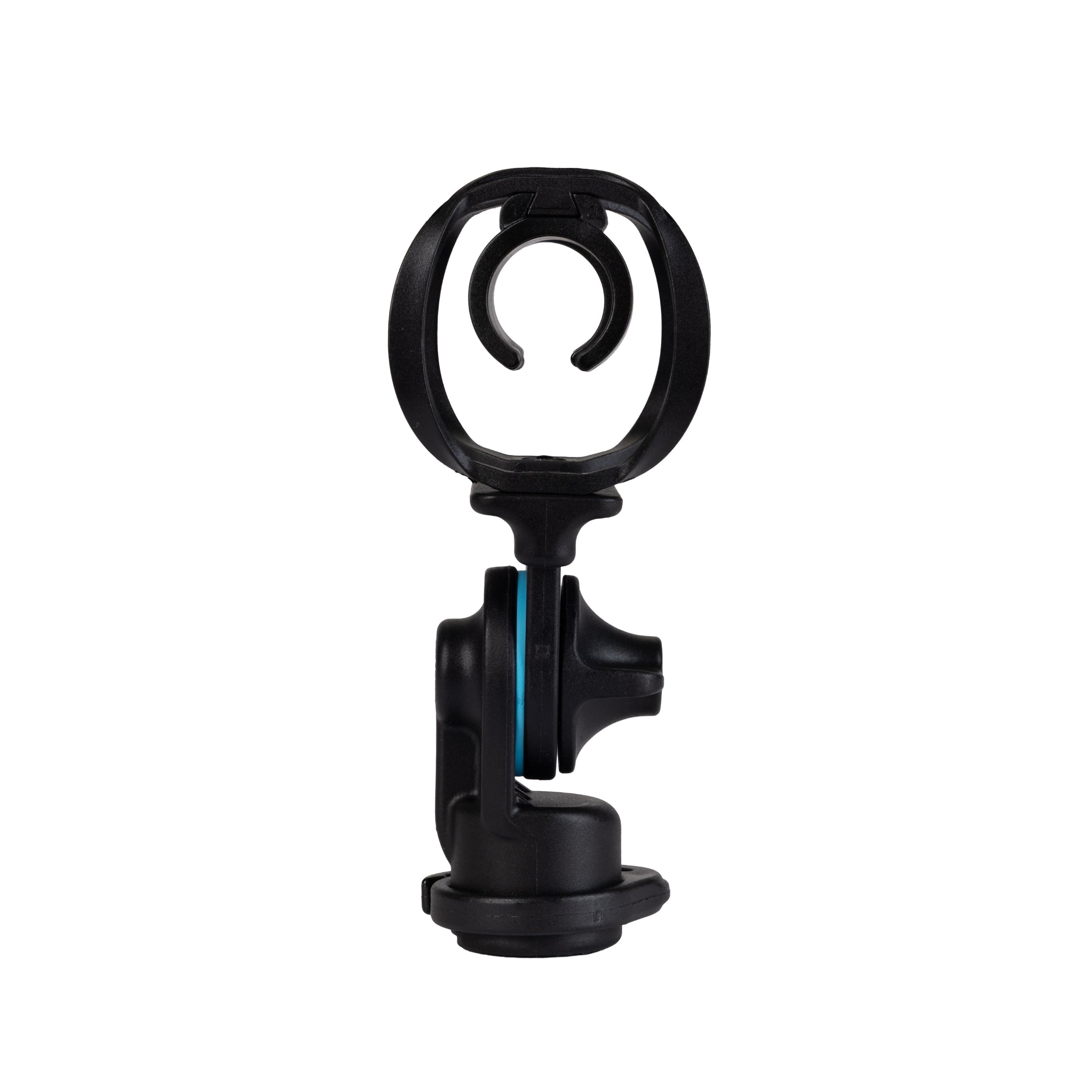

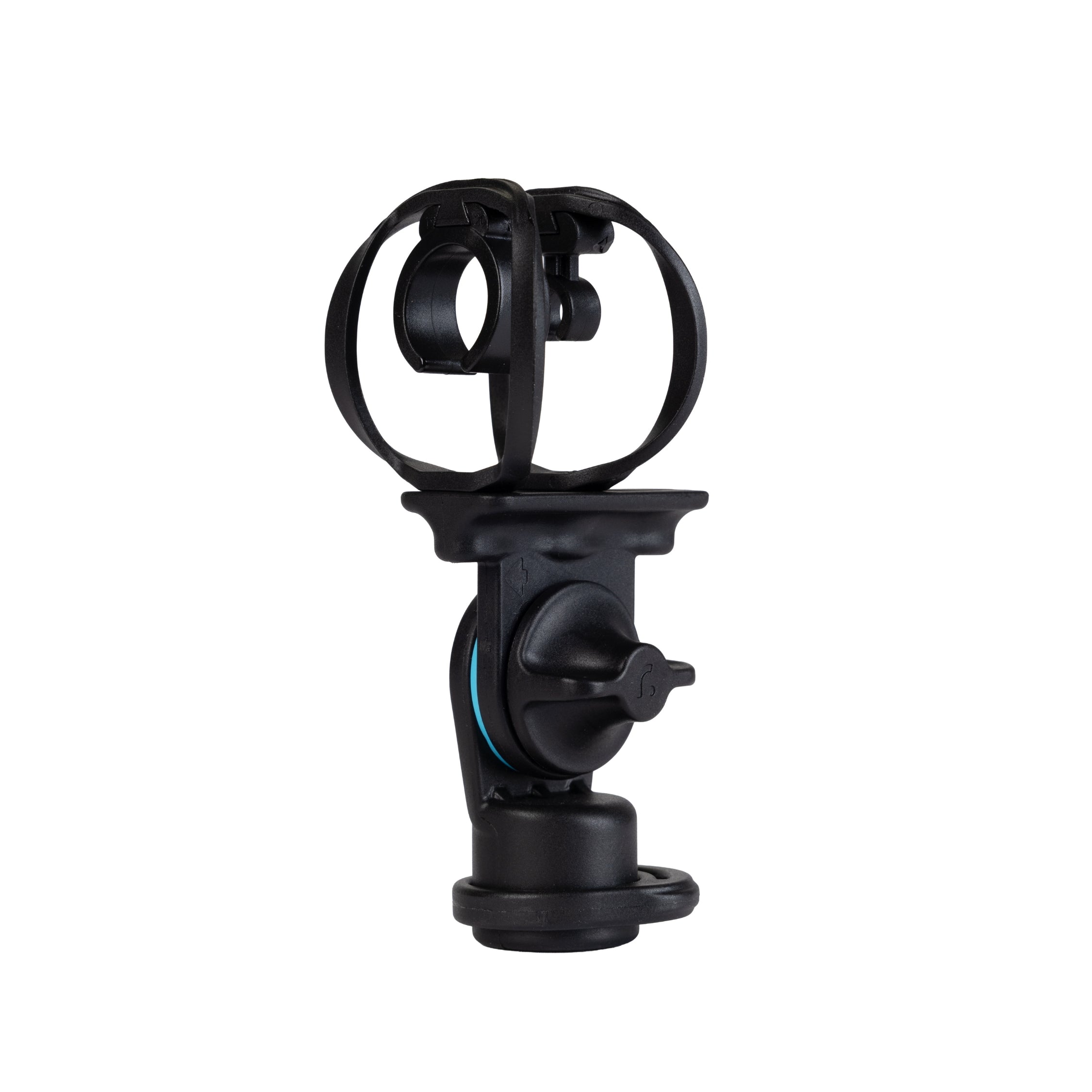

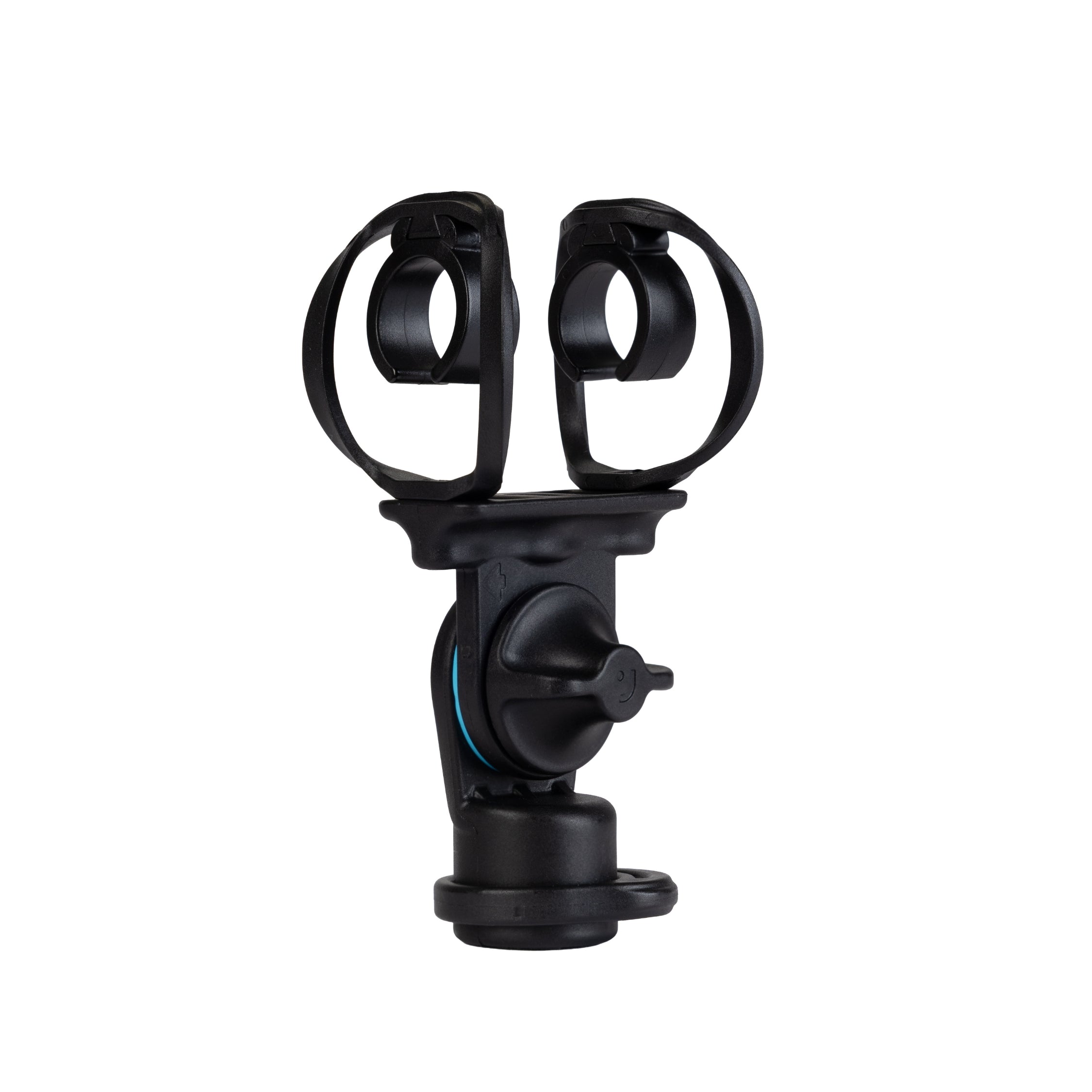

The Mini-RAD Shock Mount is a compact professional shock mount developed specifically for small diaphragm pencil microphones, combining exceptional isolation performance with an ultra low profile design that stays out of the way during critical recording work.
Designed for microphones from ø19-21 mm, the Mini-RAD Shock Mount helps minimise handling noise, vibration, and stand borne rumble while maintaining an incredibly compact footprint. At the centre of the design is the new Mini-RAD hoop, featuring a reduced ø45 mm diameter compared to traditional ø65 mm RAD hoops, allowing closer microphone placement and improved positioning flexibility in tight recording environments.
Weighing just 60 grams (2.1oz), the Mini-RAD is ideal for applications where size, weight, and discretion matter. From plant microphones and car mounts to interior booms, low profile orchestral setups, and compact stereo rigs, the mount provides secure isolation without adding unnecessary bulk or visual distraction. A smooth 180° swivel mechanism provides fast and precise microphone positioning, while the integrated cable clip keeps cabling secure without the bulk of a traditional XLR holder. The result is a cleaner, lighter, and more streamlined mounting solution for modern recording workflows.
The Mini-RAD features a marine grade brass 5/8-27" female threaded insert and includes a 5/8”-27 male to 3/8”-UNC female adaptor for compatibility with professional microphone stands and studio hardware worldwide. Designed as part of the wider Radius ecosystem, the Mini-RAD Studio Mount is fully compatible with existing RAD mount and Mini-ALTO components, while also supporting future Radius products and accessories.
Key Features
- Designed for small diaphragm pencil microphones
- Ultra low profile design for discreet and precise microphone placement
- Mini-RAD hoop with compact ø45 mm diameter
- Lightweight construction at just 60 grams
- Professional isolation from handling noise and vibration

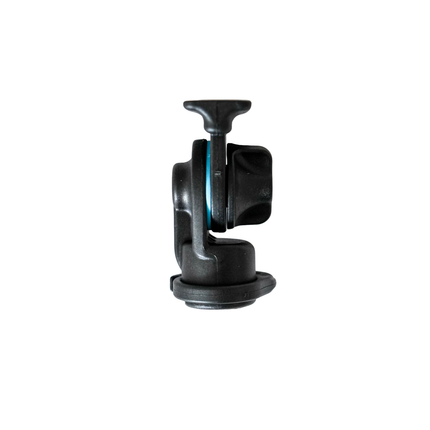

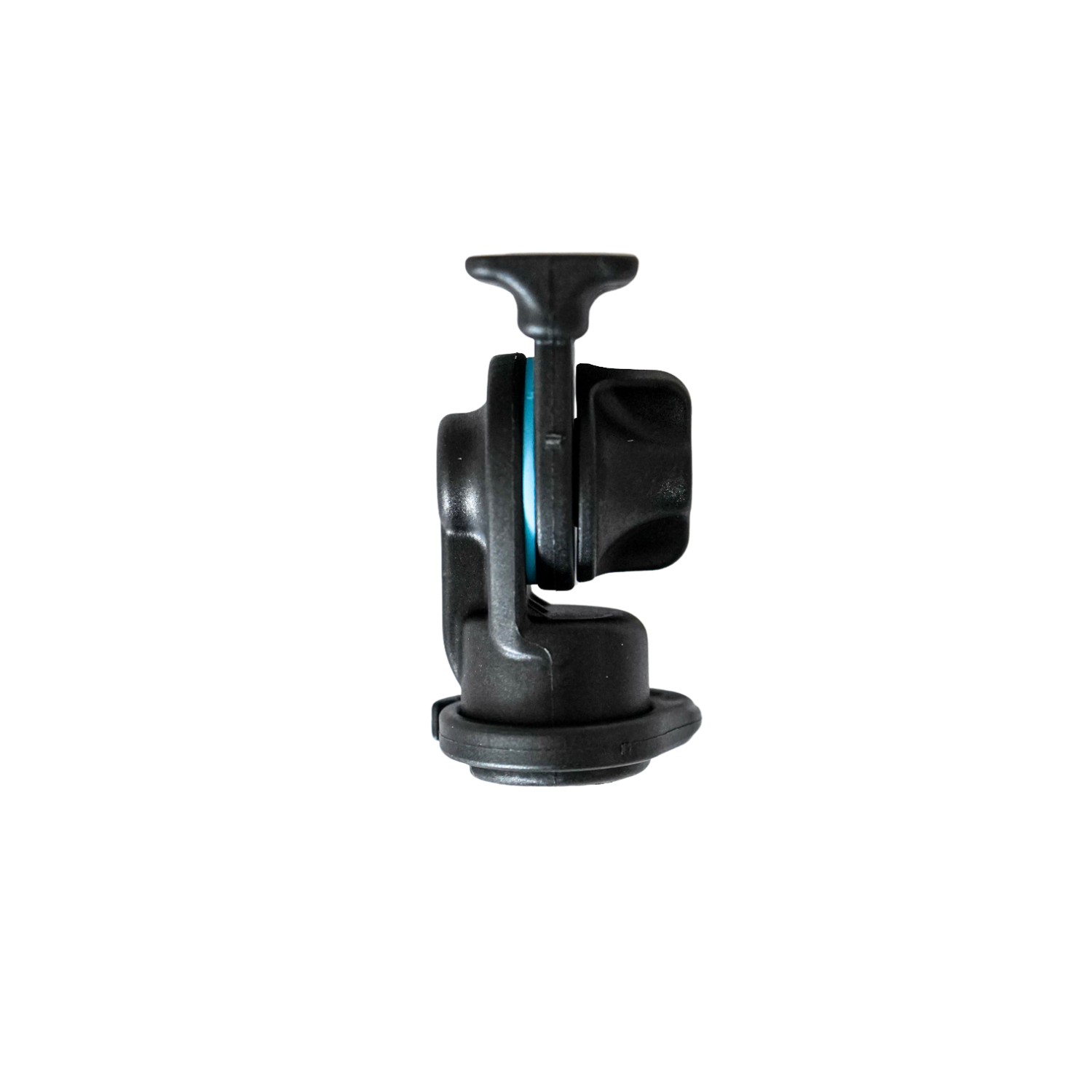

- Smooth 180° swivel mechanism
- Integrated cable clip for streamlined cable management
- Robust construction for professional studio and location use
- Durable brass 5/8-27 female threaded insert
- Includes 5/8”-27 male to 3/8”-UNC female adaptor
- Compatible with existing RAD mount and Mini-ALTO components
- Designed for compatibility with future Radius products and accessories
Ideal Applications
- Plant mics
- Car mounted
- Interior boom setups
- Orchestral
- Compact stereo
- Theatre
- Documentary
- Wildlife recording
- Discreet music recording
Compatibility
Mini-RAD Shock Mount with Mini-RAD Hoops 19/21mm
AKG: C451B; Audio-Technica: AT4021; AT4041; AT3031; Audix: SCX1; SCX1HC; SCX1O; Austrian Audio: CC8
Behringer: B-5; C-2; BeyerDynamic: MC 930; Brauner: Phantom C; Clockaudio: C850E; DPA: 4006C; 4011C; 4018C; 4017C; 2011C
Haun: MBC 660L; Josephson: C42; Lewitt: LCT 040; Line Audio: CM3; CM4; MBHO: 603A; MicBooster (Fel): Pluggy XLR; Microtech Gefell: M 300
Milab: VM-44; Neumann: KM184; Oktava: MC-012; MK-012; Pearl: ELM-C; RØDE: M5; NT5; NT55; NT6; Rycote: SC-08; CA-08; OM-08
Sanken: CU-M1; CU-M2M; CUP-X1; CS-M1; CO-100K; Samson: C02; Schoeps: CMC1-4; CMC1-41; MiniCMIT; CMC1-KMIT; CMC6-4; CMC6-41
SE Electronics: sE7; Sennheiser: MKH 8020 + MZX; MKH 8040 + MZX; MKH 8050 + MZX; MKH 8090 + MZX; MKH 8030 + MZX; MKH 8060 + MZX; e614
Shure: KSM141; Sony: ECM-100U; ECM-100N; Shure: KSM141; Sony: ECM-100U; ECM-100N; Telefunken: M60 FET, ELAM 260
Mini-RAD Shock Mount, with 19/21mm & 8.0mm Mini-RAD hoops
MicBooster (FEL): Clippy EM264Y
Schoeps: CMC1 L + Mk4; CMC1 L + Mk41; CCM4; CCM41
Sennheiser: MKH 8020 + MZL; MKH 8040 + MZL; MKH 8050 + MZL; MKH 8090 + MZL; MKH 8030 + MZL
Mini-RAD Shock Mount, with 12.5mm Mini-RAD Hoops
MicBooster (FEL): Clippy EM272
LOM: Ucho Pro; Uši Pro
Oaka Instruments: Mini Verde
Specifications
Dimensions W 45.9 x H 112.0 x D 60.0 mm
Net Weight 62 grams
Thread Mould-insert: 5/8”-27 UNS Brass Female Thread
Adaptor Stainless Steel, 5/8”-27 UNS Male to 3/8”-16 UNC Female (with penny slot)
Carton W 115 x H 105 x D 100mm
Gross weight 120 grams

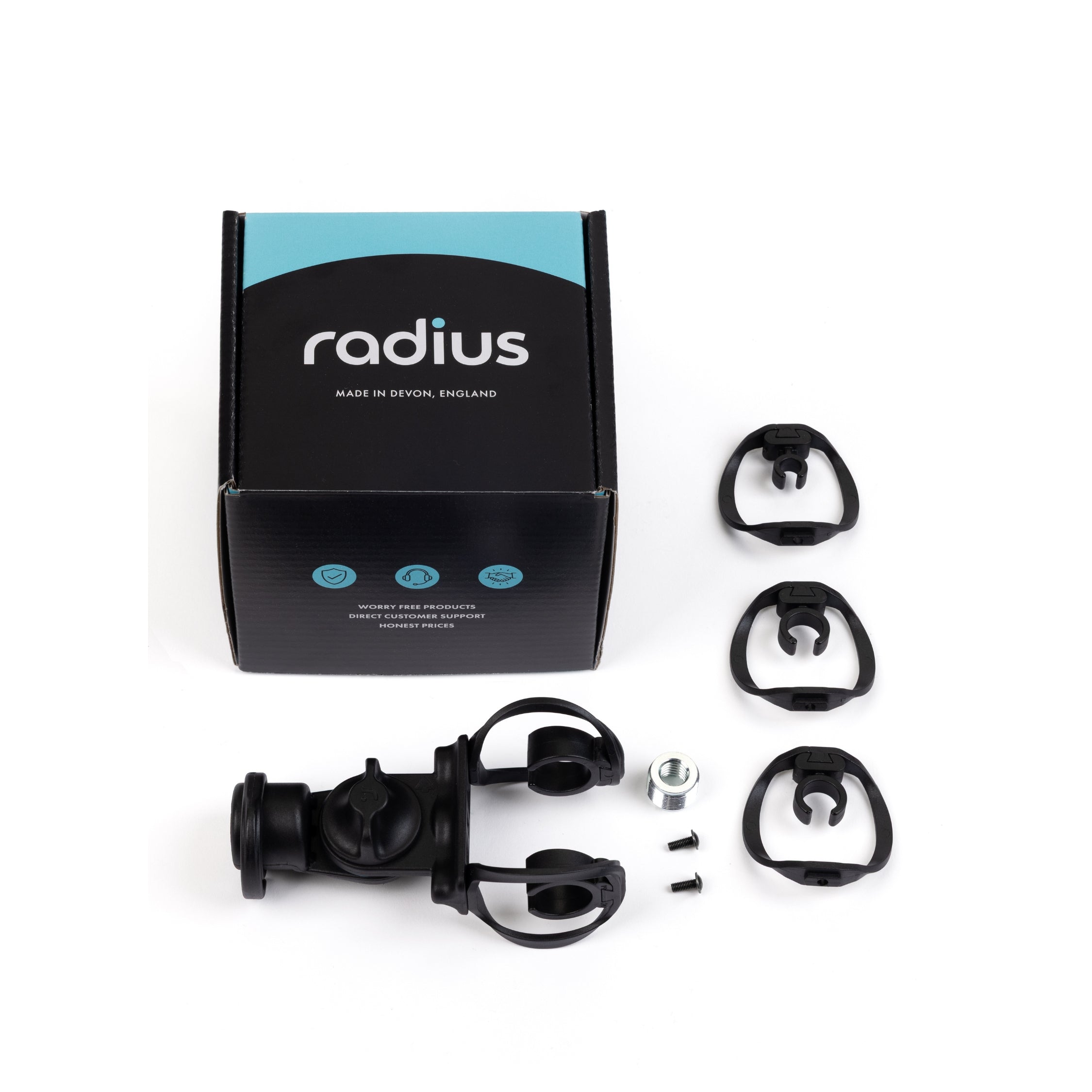

What’s in the Box:
Mini-RAD Shock mount

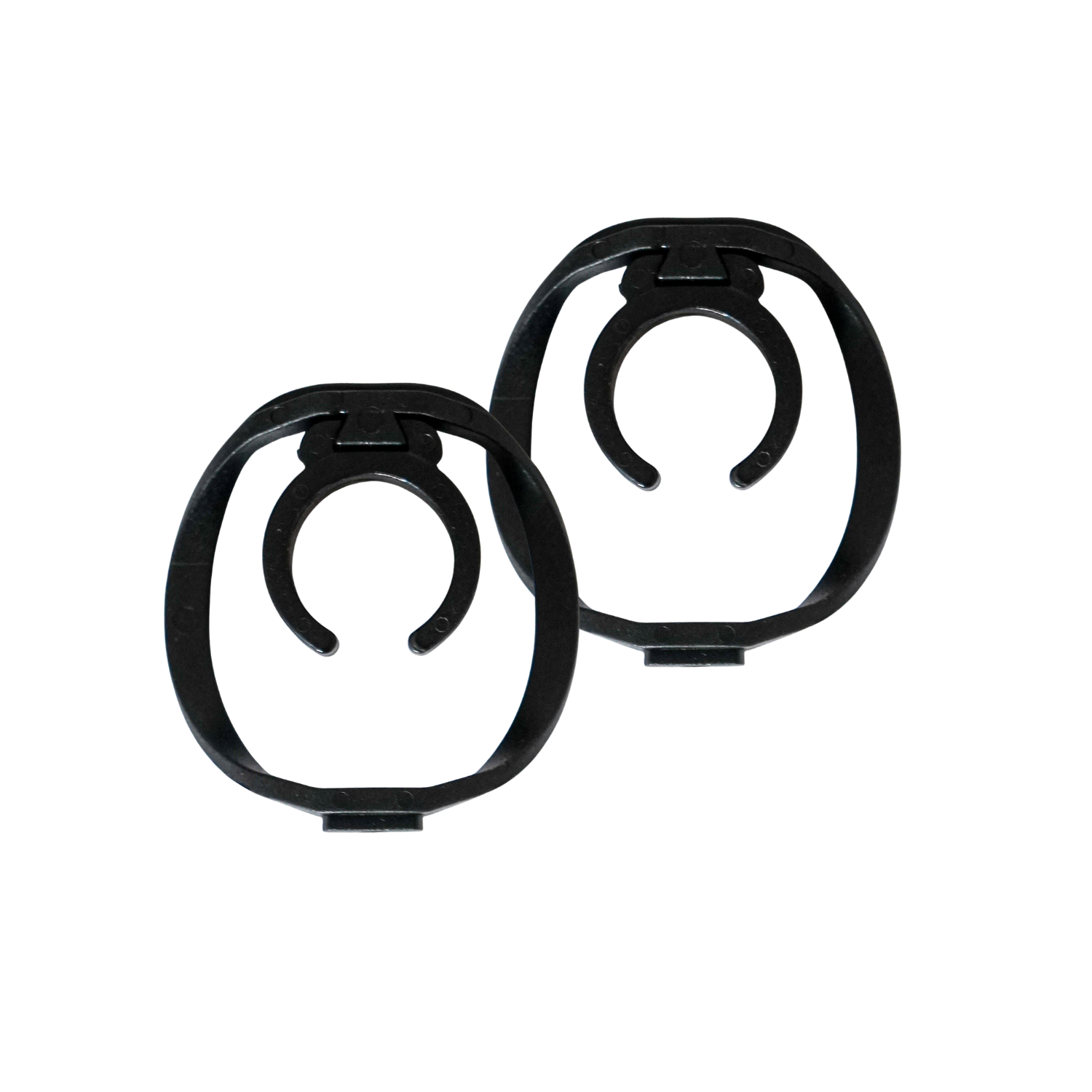

w/Mini-RAD 19/21mm Hoops (55D Black)
Spares:

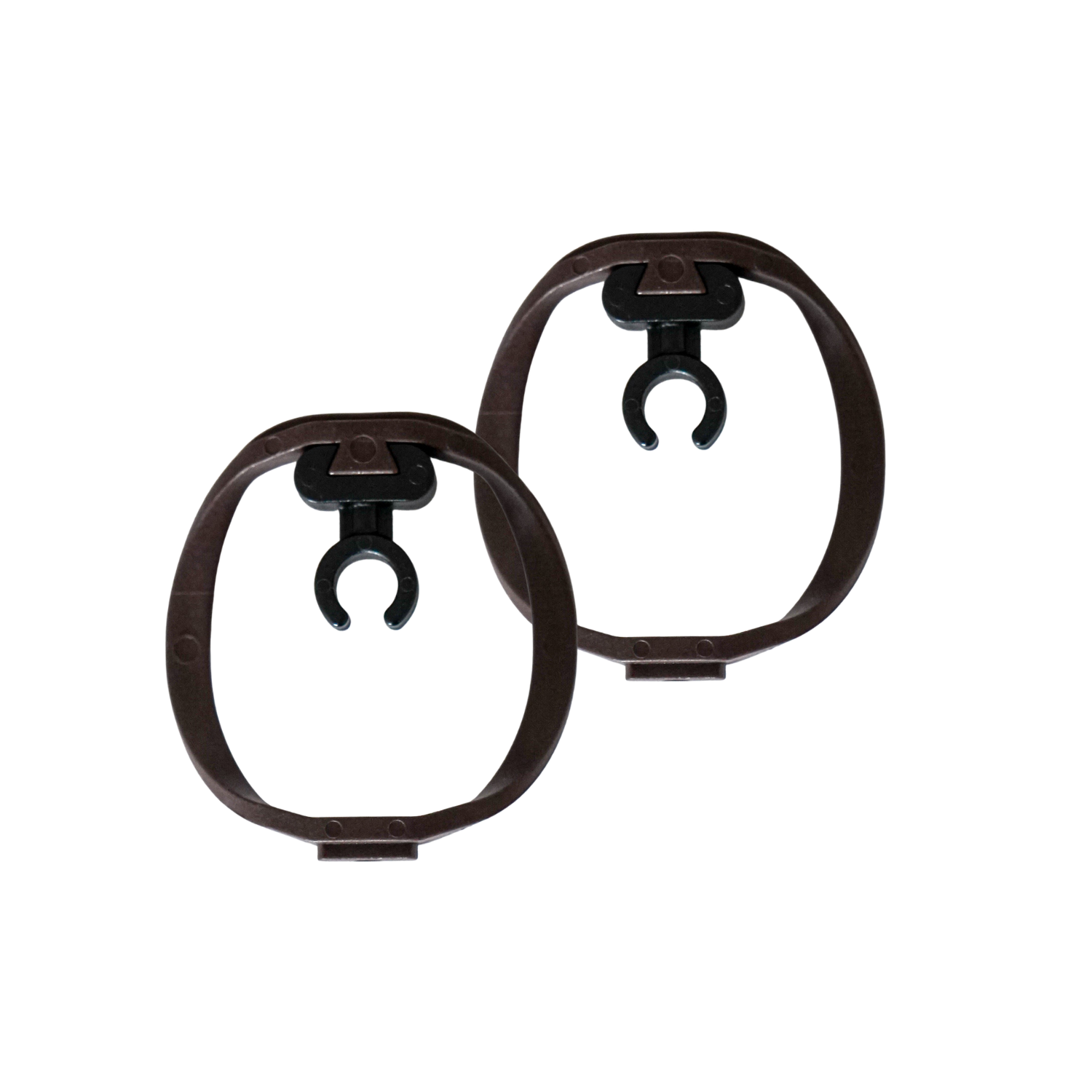

1 x Mini-RAD hoop 8.0mm (45D Espresso Brown)

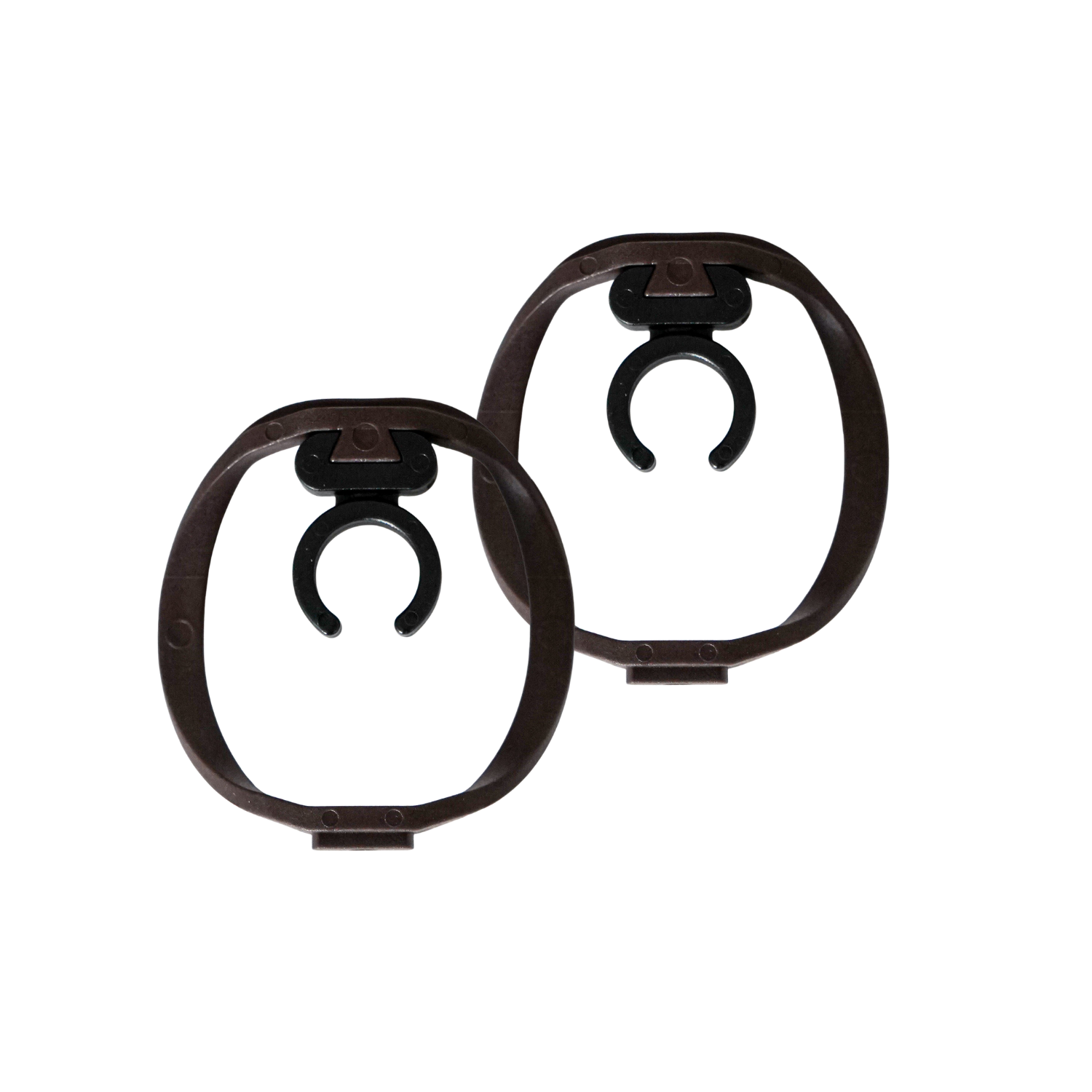

2 x Mini-RAD hoops 12.5mm (45D Espresso Brown)
1 x 2mm Allen key
2 x M3 x 10mm screws
1 x Metal 5/8-27M to 3/8-16F Adaptor
